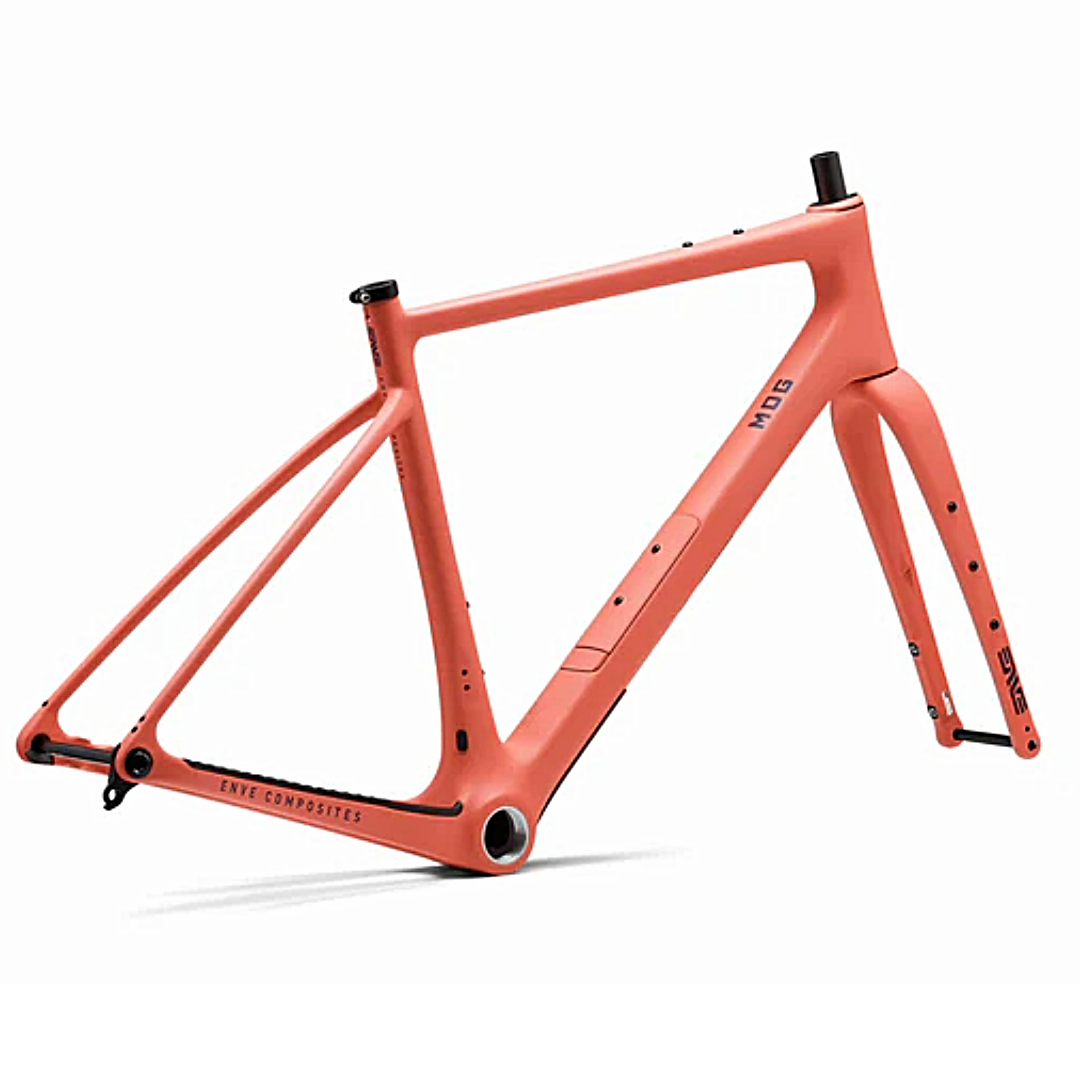

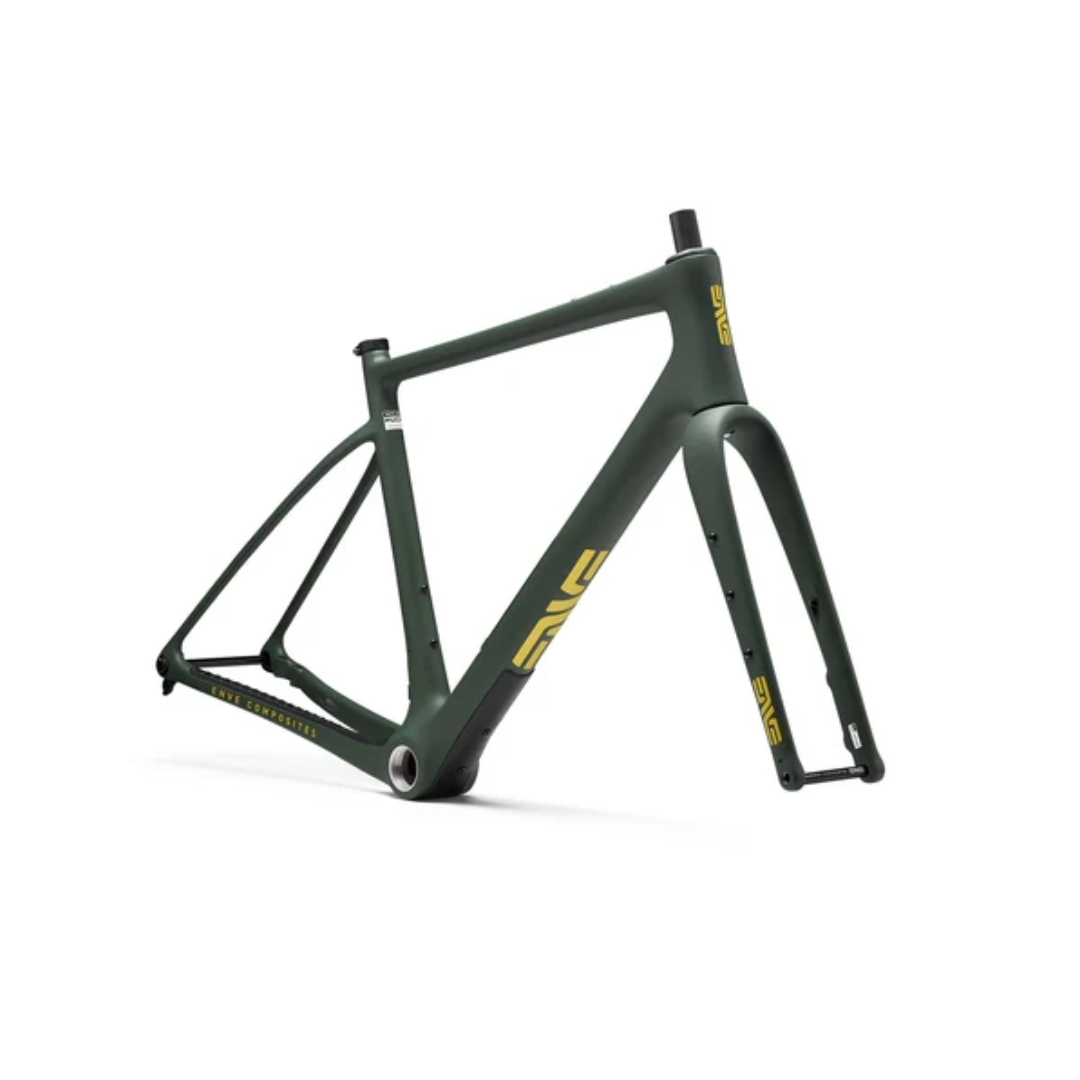

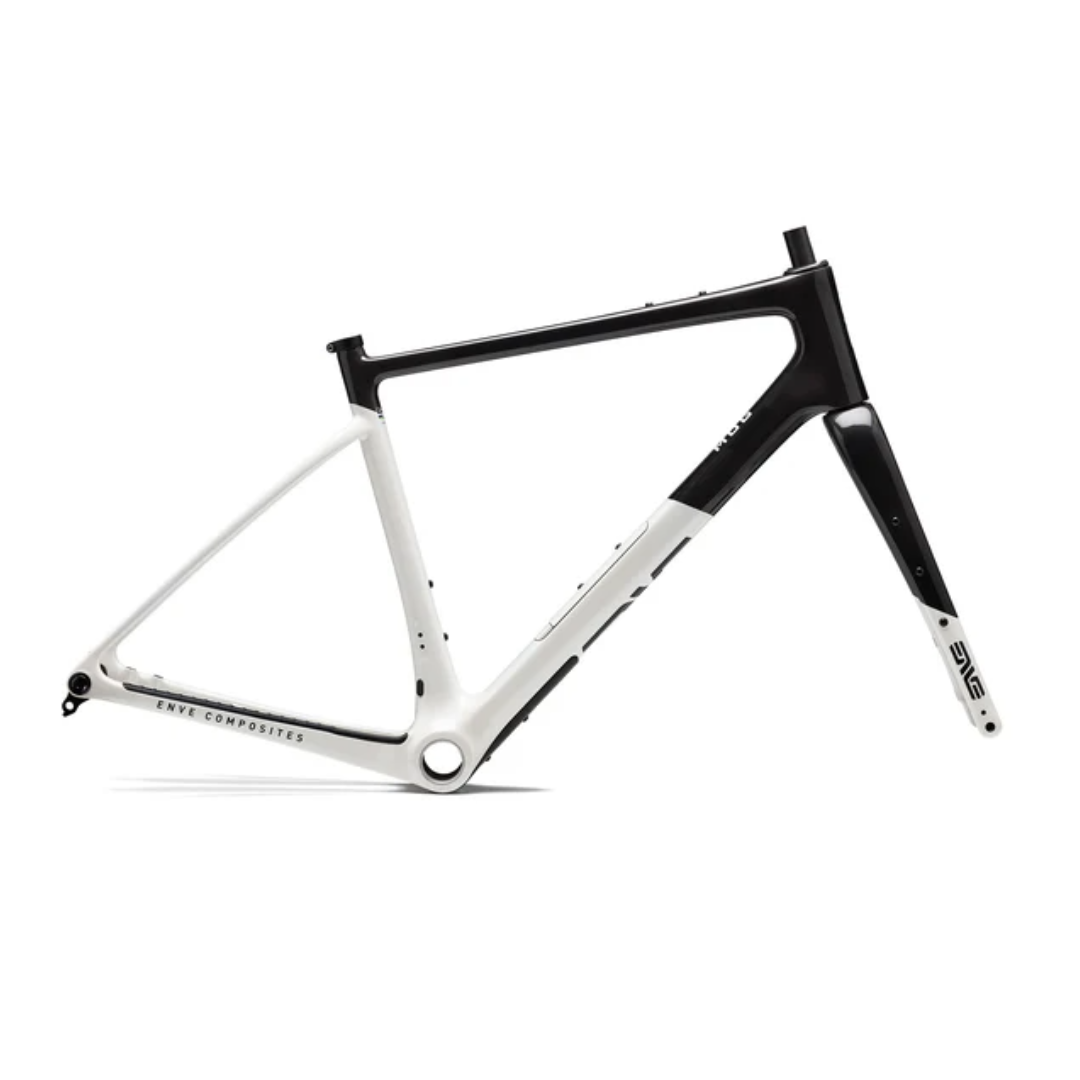

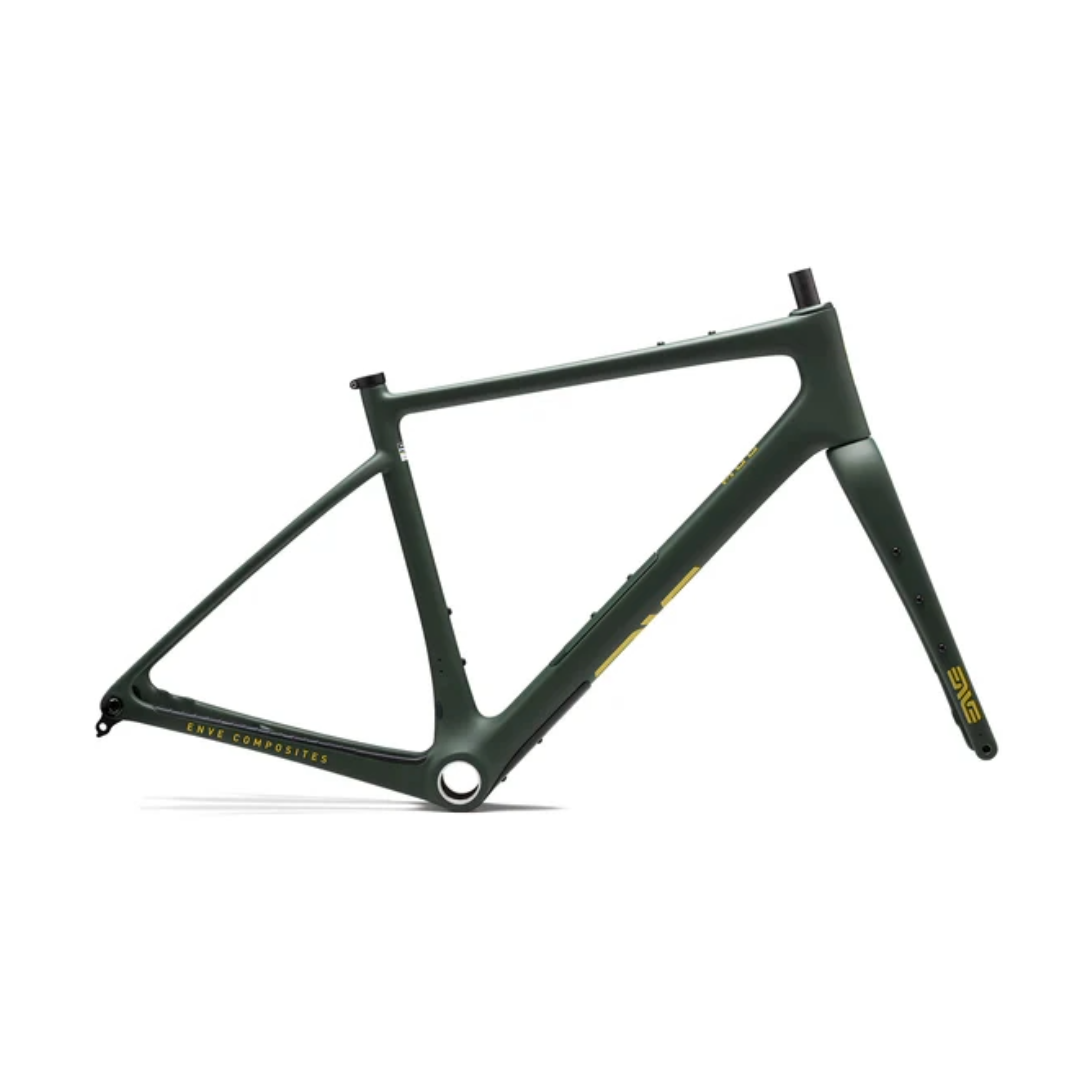

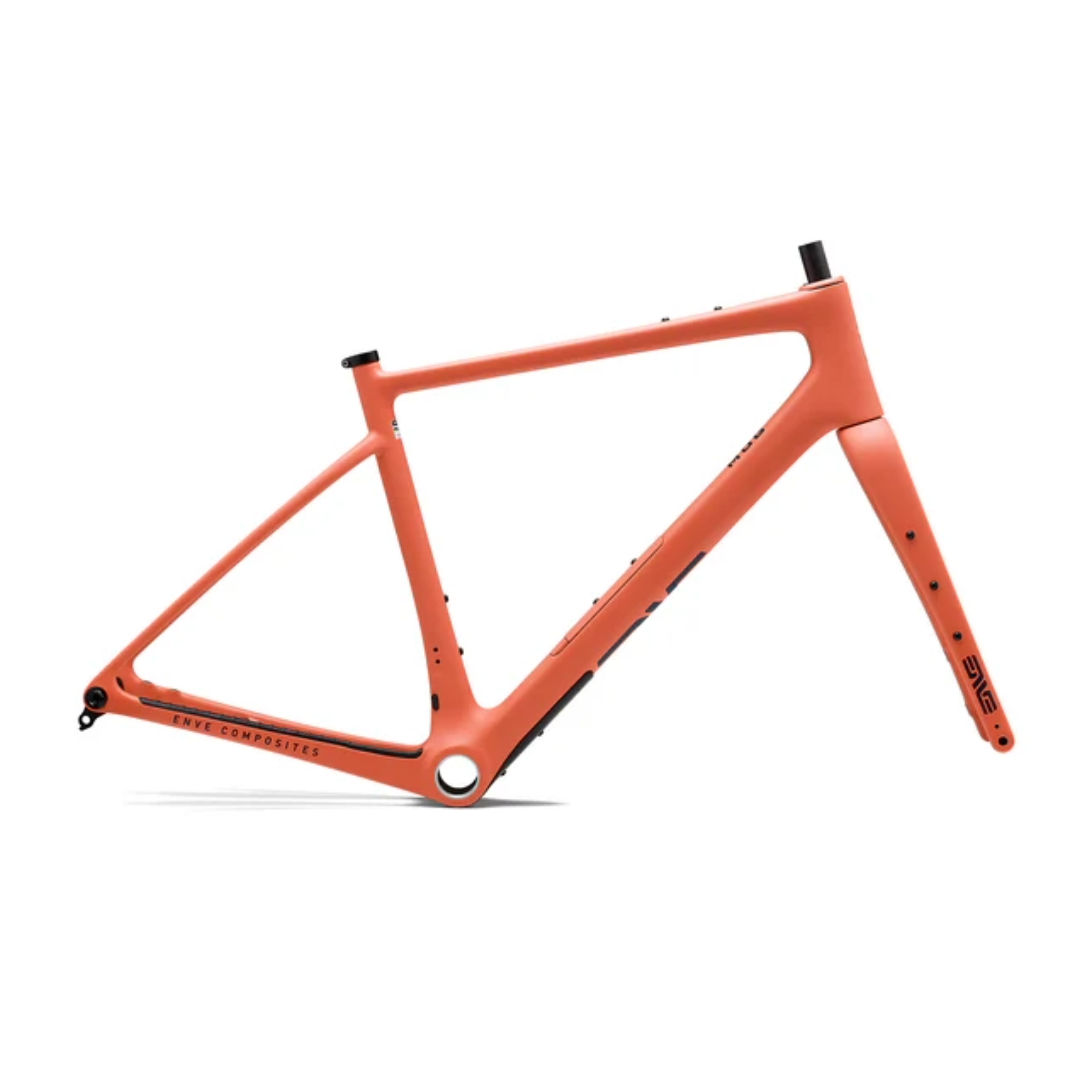

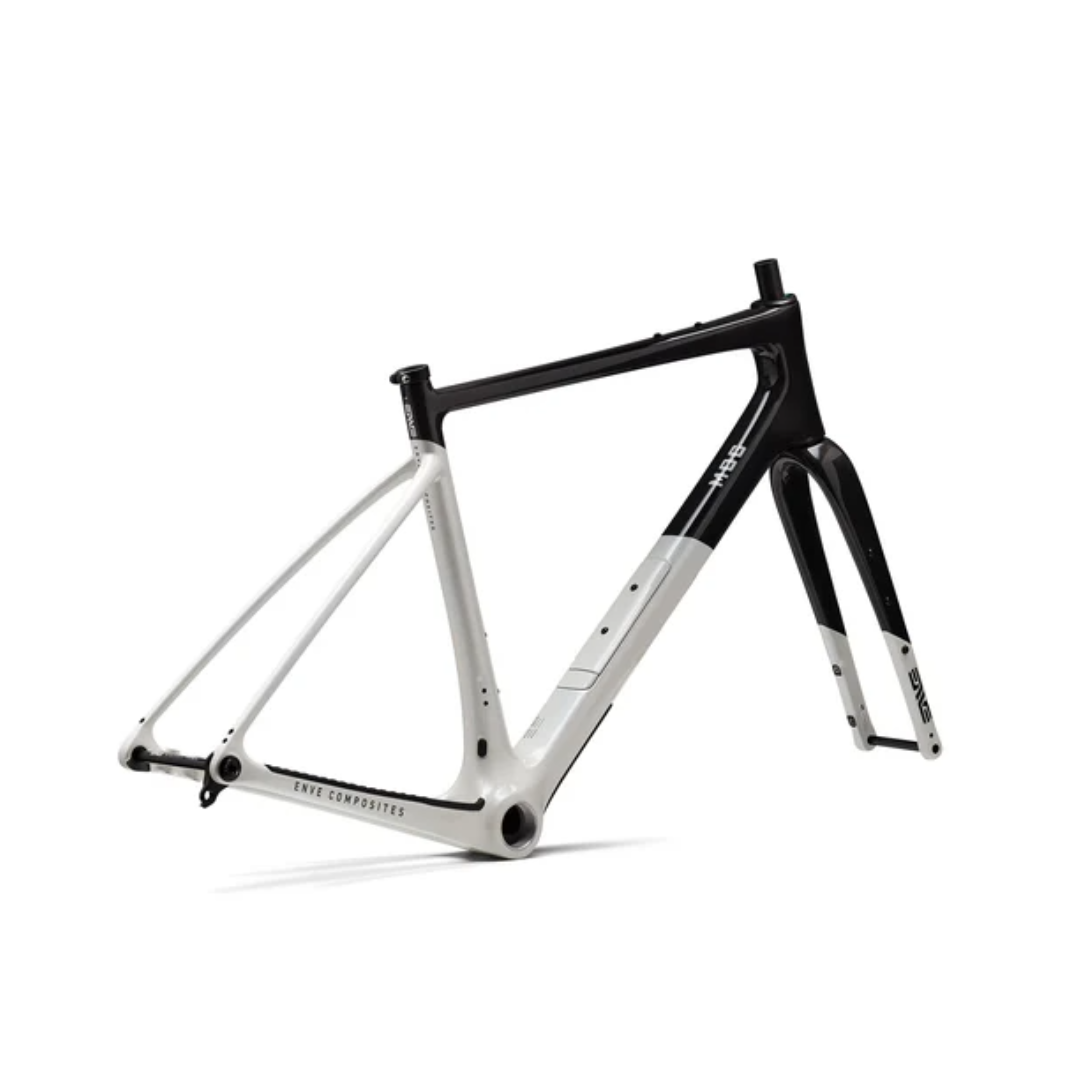

ENVE MOG Chassis
Full of capability and overflowing with versatility, the MOG delivers a world of possibilities ranging from adventure to race, and everything between. With abundant tire clearance, storage solutions, and performance geometry, the MOG has it all, and more.
Includes:
Seatpost, Stem and Handlebar
Frame weight: 950 grams (56cm, painted, no hardware)
Custom Builds Available
Full of capability and overflowing with versatility, the MOG delivers a world of possibilities ranging from adventure to race, and everything between. With abundant tire clearance, storage solutions, and performance geometry, the MOG has it all, and more.
Includes:
Seatpost, Stem and Handlebar
Frame weight: 950 grams (56cm, painted, no hardware)
Custom Builds Available
Full of capability and overflowing with versatility, the MOG delivers a world of possibilities ranging from adventure to race, and everything between. With abundant tire clearance, storage solutions, and performance geometry, the MOG has it all, and more.
Includes:
Seatpost, Stem and Handlebar
Frame weight: 950 grams (56cm, painted, no hardware)
Custom Builds Available
Frame Material ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat-Mount Disc, Threaded T47 BB, Internal Routing, Fender Compatible
Fork Material ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat-Mount Disc, Internal Routing, Fender Compatible
Target Application Gravel Racing/Riding/Exploration/Adventure
Sizes (cm) 49, 52, 54, 56, 58, 60
Fork Rake 57, 55, 53
Fork Axle to Crown 395mm
Frame Size/Fork Rake 49cm/57, 52cm/57, 54cm/55, 56cm/55, 58cm/53, 60cm/53
Frame Weight 950g +/- 2% (Size 56, Painted, No Hardware)
Headset ENVE Integrated IS52/IS52 Internal Drop-In
Headset Bearing 1.5" IS52 Upper and Lower
Seat Post Diameter 27.2
BB Type T47 Inboard Bearing
Brake Mount Flat Mount
Brake Rotor Compatibility F: 160/180, R: 140/160 (Adapters Required)
Front Axle 12x100 (Total Length: 122, TP:1.5, TL:15)
Rear Axle 12x142 (Total Length: 168, TP:1.0, TL:14)
Minimum Tire Size 700 x 36c
Optimal Tire Size 700 x 40c-44c
Maximum Listed Tire Clearance 700 x 50c
Frame Routing ENVE IN-Route Internal
Water Bottle Capacity 3
Top Tube Mounts Yes
Fender Mount Compatible Yes
Wheel Size 700C (650b Not Recommended)
Color Pantone 7528C (Equivalent to Sand)
Contact us for builds and custom options. We have tons of options, and our experts look forward to working together to build the bike of your wildest imagination.
imaginarybikeworks@gmail.com
(864)-581-2068
